N8 Sensor & Other Modules Information

This post can not be necessarily categorized as a repairing post so consider it as a general information post on Nokia N8 sensors like Proximity Sensor and some other Modules like Gps Module.
I have marked multiple parts in multiple diagrams below check the diagrams carefully. I have wrote this post if you are having trouble dissembling your phone Nokia N8 How To Dissemble Guide with Diagrams.
Please Note that we will edit these solutions or add new ones if found in this page at any time in the future. So feel free to come back any time on this page to stay up to date.
This is Nokia N8 Proximity Sensor
Nokia N8 Proximity Sensor
Nokia N8 Proximity Sensor
This is Nokia N8 3D Magnetometer
Nokia N8 3D Magnetometer
Nokia N8 3D Magnetometer
This is Nokia N8 3D Accelerometer
Nokia N8 3D Accelerometer
Nokia N8 3D Accelerometer

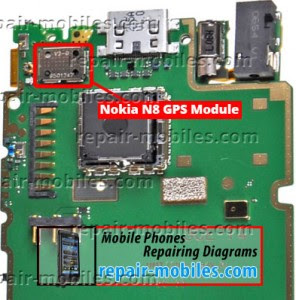

This is Nokia N8 GPS Module
Nokia N8 GPS Module
Nokia N8 GPS Module
If you have further Questions please don’t hesitate to leave a comment.
Note: Every repairing solution posted here is tested by at least one member of our team. Use the information available here at Your Own Risk. We are not responsible if any harm comes to your device during the repairing process.
